チュートリアル演習

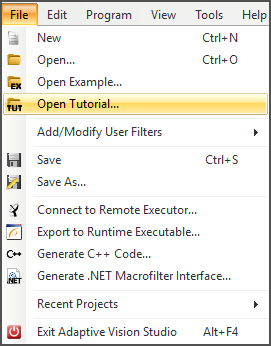

オーロラビジョンスタジオでチュートリアル演習を開くには、ファイル → チュートリアルを開くを選択し、利用可能なプロジェクトから選択します。
| No. | Image | Name | Description |
|---|---|---|---|
| 1. |  |
Read the Barcode | Finding and reading barcodes |
| 2. |  |
Read the QR Code | Finding and reading QR Codes |
| 3. |  |
Count the Mounts | Finding element count using Blob Analysis |
| 4. |  |
Classify the Mounts | Finding damaged mounts using Blob Analysis |
| 5. |  |
Count Nails | Selecting particular elements among various types of elements |
| 6. |  |
Sorting Blobs | Sorting found blobs and selecting particular elements |
| 7. |  |
Detecting Chocolate Coverage on a Wafer | Finding not covered chocolate using Blob Analysis |
| 8. |  |
Extracting Capsule Shape | Extracting object from background using 2D Edge detection |
| 9. |  |
Finding PCB Missing Covering | Finding not covered elements using Blob Analysis |
| 10. |  |
Edge-based Template Matching: Gasket | Finding object using Edge-based Template Matching |
| 11. | |
Edge-based Template Matching: Gasket (expert) | Finding object using Edge-based Template Matching segmented ROI. |
| 12. |  |
Gray-based Template Matching: Basic | Finding object using Gray-based Template Matching |
| 13. |  |
Gray-based Template Matching: Missing Chip | Finding a missing element using Gray-based Template Matching |
| 14. |  |
Shape Fitting: Gasket | Measuring distance between two holes |
| 15. |  |
Shape Fitting: Measuring holes | Performing basic measurements using shape fitting |
| 16. |  |
Image Modification Using the HMI | Perform pipeline of the image modifications using configurable HMI |
| 17. |  |
Generating Plots Using Formulas | Generating plots using formulas and array execution mode |
| 18. |  |
Conditions in Formulas | Using conditions in formulas |
| 19. |  |
Bottle Inspector Part 1: Counting Bottles | Counting bottles using 1D Edge detection algorithms |
| 20. |  |
Bottle Inspector Part 2: Measuring Liquid Level | Measuring liquid level in bottles using 1D Edge Detection algorithms |
| 21. |  |
Bottle Inspector Part 3: Foam Detection | Checking for foam in bottle using Image Analysis |
| 22. |  |
Counting Saw Teeth | Counting elements using 1D Edge Detection algorithms |
| 23. |  |
Finding Razor Head Defects | Finding defects in produced elements |
| 24. |  |
Measure Objects | Measuring object dimensions using Template Matching an Shape Fitting |
| 25. |  |
Reading Numbers from Images | Reading data from LCD display using OCR technique |
| 26. |  |
TcpIp Shoutbox Server | How to create an application that receives text messages through Tcp/Ip |
| 27. |  |
TcpIp Shoutbox Client | How to connect to a server and send text messages through TcpIp |
| 28. |  |
Calculating factorial using registers | Example shows how to calculate factorial using macrofilter registers. |
| 29. |  |
Dealing with domain errors using the error handlers | Example shows how to create errors handlers and how to use them. |
| 30. |  |
Using HMI multipanel control | HMI control |
| 31. |  |
Image Stitching | Seamlessly stitching images from two cameras |
